Unlimited Motor Pump

Unlimited Motor Pump

Conventional motor pump parameters:

Electrical

·         Voltage: 220 V AC

·         Frequency: 50 Hz

·         Power: 1 HP/0.75 KW

·         Current: 7.5 (Max.)

Fluid Dynamics

·         Operating Pressure: 2 kg/cm² (min.)

·         DLWL: 15m

·         TH: 30m

·         Discharge: 2000 LPH

Physical

·         Motor cost: Rs. 8000 including pipes

Average home details

·         Tank Capacity: 2000 Litres

·         Time required for filling tank: 1 hour

·         Power consumed for 1 hour: 1625 watts

Formulae

                Discharge=d

                Capacity=C

                Time=t

                                                Therefore, d x t = C

As per the formula, the discharge needed to fill the tank with capacity of 2000 litres, with a time period of 24 hours is, d = 2000/24 = 83.3 LPH

                                                Discharge α Power

Therefore, the apparent power required for discharge of 83.3 LPH is 67.68 watts

For economic usage of our ‘New Concept’ motor, it should be able to able to discharge 83.3 LPH with a power of 1/4^th of the conventional motor pump. That is, 17 watts (approx.) for pumping water to a height of 30 meters. And the cost of the system must be maintained with a range of Rs. 3000.

This product will have a burst of sales in INDIAN market, if it is a maintenance free motor pump.

Industry Certificates

Industry Cetificates

Academic Certificates

List of Academic Certificates
Academic Certificates

TePP

Technopreneur Promotion Program Application for Central Government Project (INDIA)

TePP

Products

List of various products development link:

https://drive.google.com/folderview?id=0B3hHjX-1aGmeT01ONWdMQlR4UGc&usp=sharing

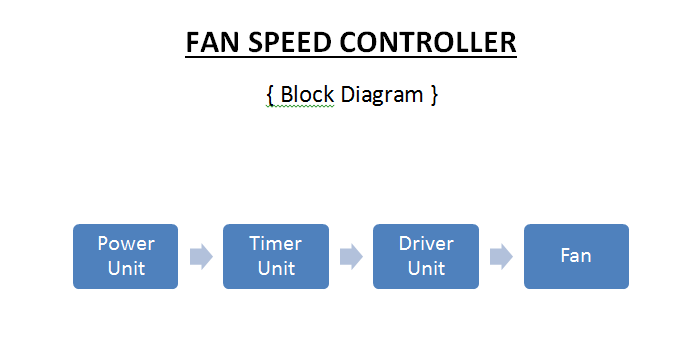

Fan Speed Controller

Algorithm

1. 1.     START
2. 2.     Check for speed switch
3. 3.     Run fan with selected speed, Display LED ‘ON’
4. 4.     Check for mode switch
5. 5.     If mode switch is off, then step 2
6. 6.     Reset internal timer and Start internal timer
7. 7.     If timer not set, then step 6
8. 8.     Check for time switch
9. 9.     If timer less than time switch, then step 7
10. 10.                         Decrease speed level to next lower level
11. 11.                         If speed level not equal to level zero, then step 4
12. 12.                         Stop fan, Display LED ‘OFF’
13. 13.                         STOP
